Raptor X8-50

A coaxial X8 heavy-lift drone. It carries fifty kilograms of cargo twenty kilometres and sets it down exactly where a vehicle cannot reach.

Request the datasheet

Overview

The Raptor X8-50 is a coaxial X8 rotary drone built for one job: to move fifty kilograms of cargo twenty kilometres and put it down where a vehicle cannot go. It has a folding carbon-fibre airframe, battery packs you can swap while running, and an AES-256 encrypted command link. A crew of two can have it in the air in under eight minutes. Twin-antenna RTK GNSS gives ±2 cm accuracy, and an INS with visual odometry keeps it flying when GNSS is jammed.

The belly bay holds a twin-latch hook rated to 50 kg, with two separate actuators and a mechanical lock that will not drop the load if power is lost. You can rack up to four separate loads and release them one by one on a single flight, set off by reaching a waypoint, an operator command or a ground beacon. Where it cannot land, a 20 m powered winch lowers the load at 1.2 m/s, watches the tension with a load cell and cuts the line by itself if the load snags. Typical jobs are forward resupply, temperature-controlled medical and cold-chain delivery, disaster relief and ship-to-shore transfer.

Key characteristics

  • 50 kg maximum load, 20 km one-way at full load and 34 km empty
  • Folding coaxial X8 carbon-fibre airframe; two people, in the air in under eight minutes
  • Swap-while-running power: 2 × 14S 30 Ah smart Li-ion packs, changed by hand in under 90 seconds
  • AES-256 MIMO C2 link to 20 km line of sight; flies without GNSS using INS and visual odometry
  • Automatic release bay with four drops per flight, plus a 20 m winch for delivery without landing
  • IP55 protection, handles steady 12 m/s wind and works from −20 °C to +50 °C

Specifications

Max payload
50 kg
Range @ 50 kg
20 km one-way
Max endurance
45 min
MTOW
125 kg
Cruise / max speed
50 / 75 km/h
C2 datalink
AES-256 MIMO, 20 km LOS

Specifications may change. We confirm the exact figures against the current datasheet when you ask.

Related products

More from the Raptor series.

  • Raptor Pilot AI

    Raptor Pilot AI

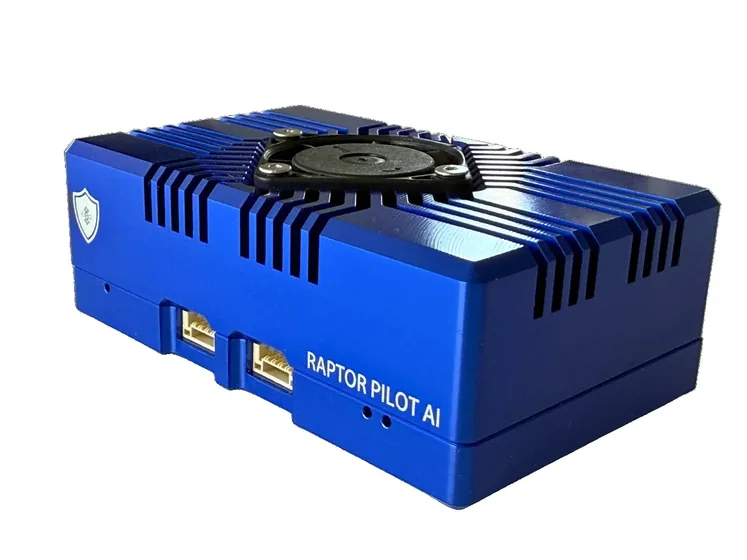

    Mission computer that sees at 60 FPS and decides on board, so nothing leaves the aircraft.
