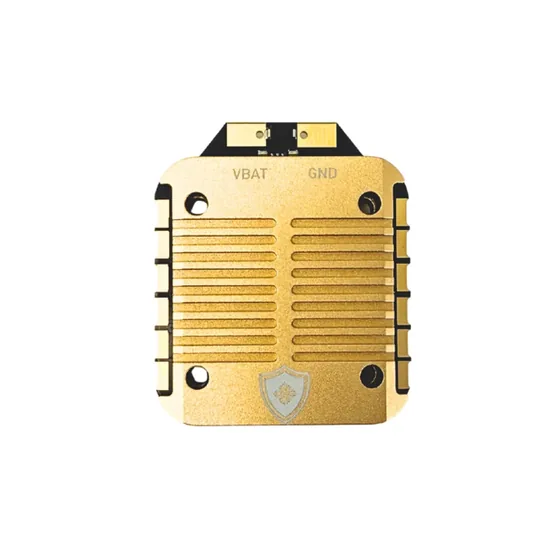

Raptor Power 8S 4in1 ESC
Four-in-one ESC giving 85 A per channel on 2S–8S, with built-in cooling.
← All products
Platforms & flight systems

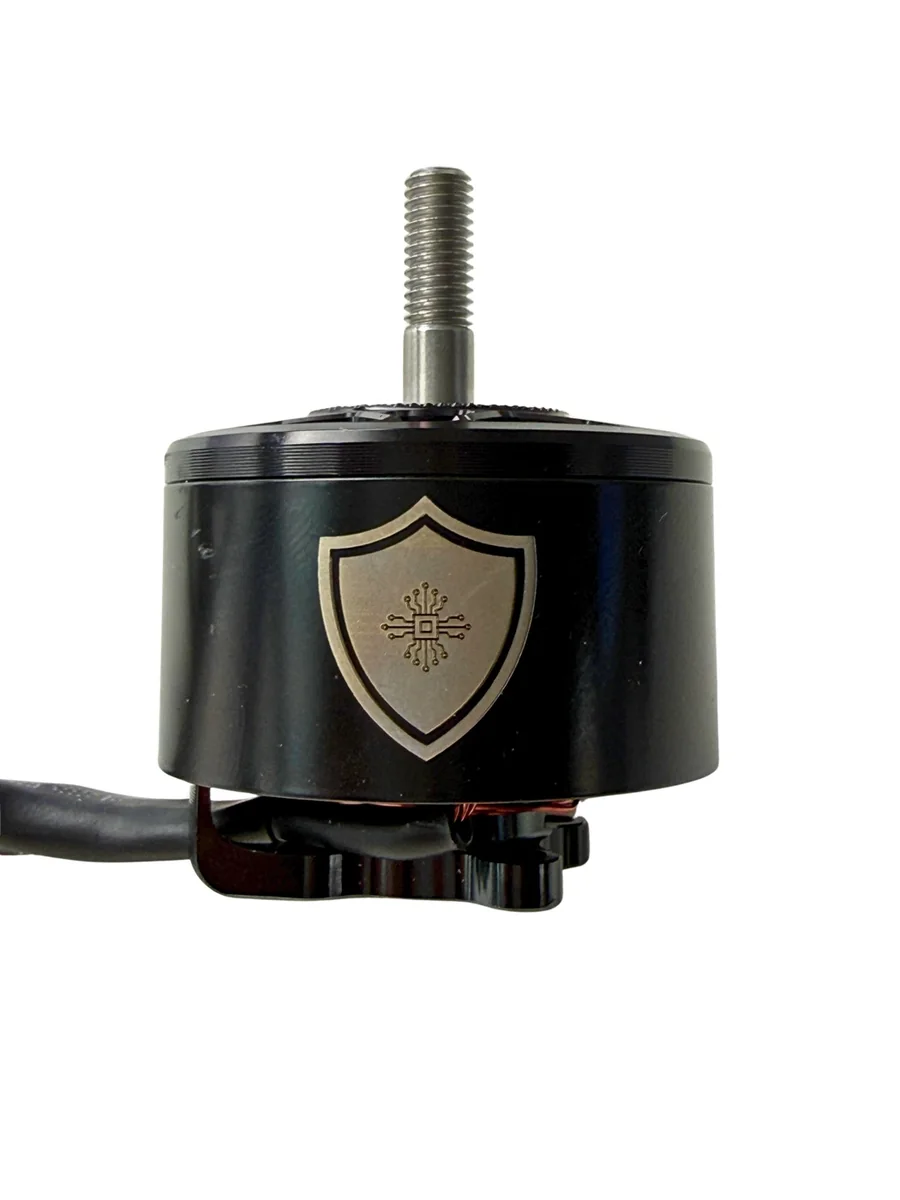

Raptor Power 900 KV Motor
A top-grade 900 KV brushless motor for interceptor drones and fast FPV platforms. It gives up to 4.15 kg of thrust across a wide 4S–12S range.
Overview
The Raptor Power 900 KV Motor is a top-grade brushless motor for interceptor drones, fast FPV platforms and tactical drones. It has a CNC-machined aluminium housing, a hardened steel shaft, high-temperature neodymium magnets, clean copper windings and low-friction, high-speed bearings. It is built to take extreme heat and mechanical stress.
It runs on 4S–12S LiPo and gives up to 4.15 kg of thrust while staying efficient and cool across the whole range. An open-air cooling design, very fast throttle response and strong torque across the voltage range keep it steady during hard flying.
Key characteristics
- CNC-machined aluminium housing with hardened steel precision shaft
- High-temperature neodymium magnets and clean copper windings
- Premium low-friction, high-speed bearings
- Open-air cooling design that runs efficiently
- Very fast throttle response with strong torque across a wide voltage range
- Made for interceptor drones, fast FPV platforms and tactical drones
Specifications
- KV rating
- 900 KV
- Operating voltage
- 4S–12S LiPo
- Maximum thrust
- 4150 g
- Maximum power consumption
- 1562 W
- Peak current
- 62 A
Specifications may change. We confirm the exact figures against the current datasheet when you ask.
