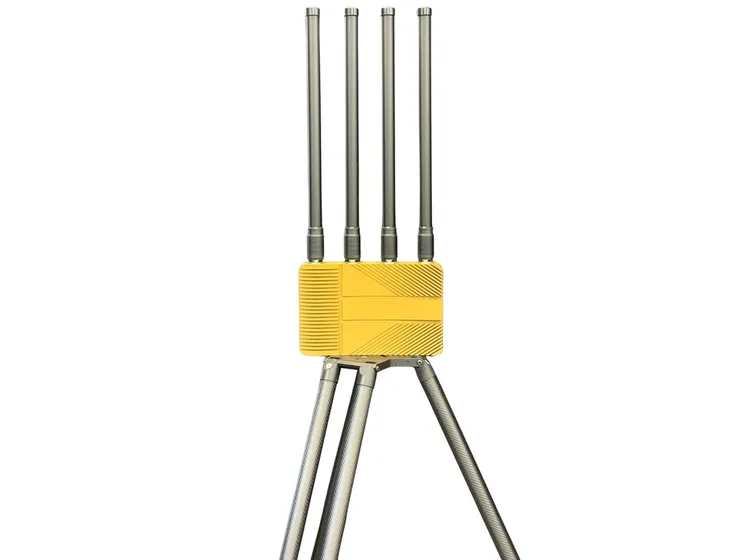

Raptor Track RF Sensor
Passive RF detection and tracking of 30+ drones across 70 MHz to 6 GHz, at over 10 km.
← All products
Effectors & defeat

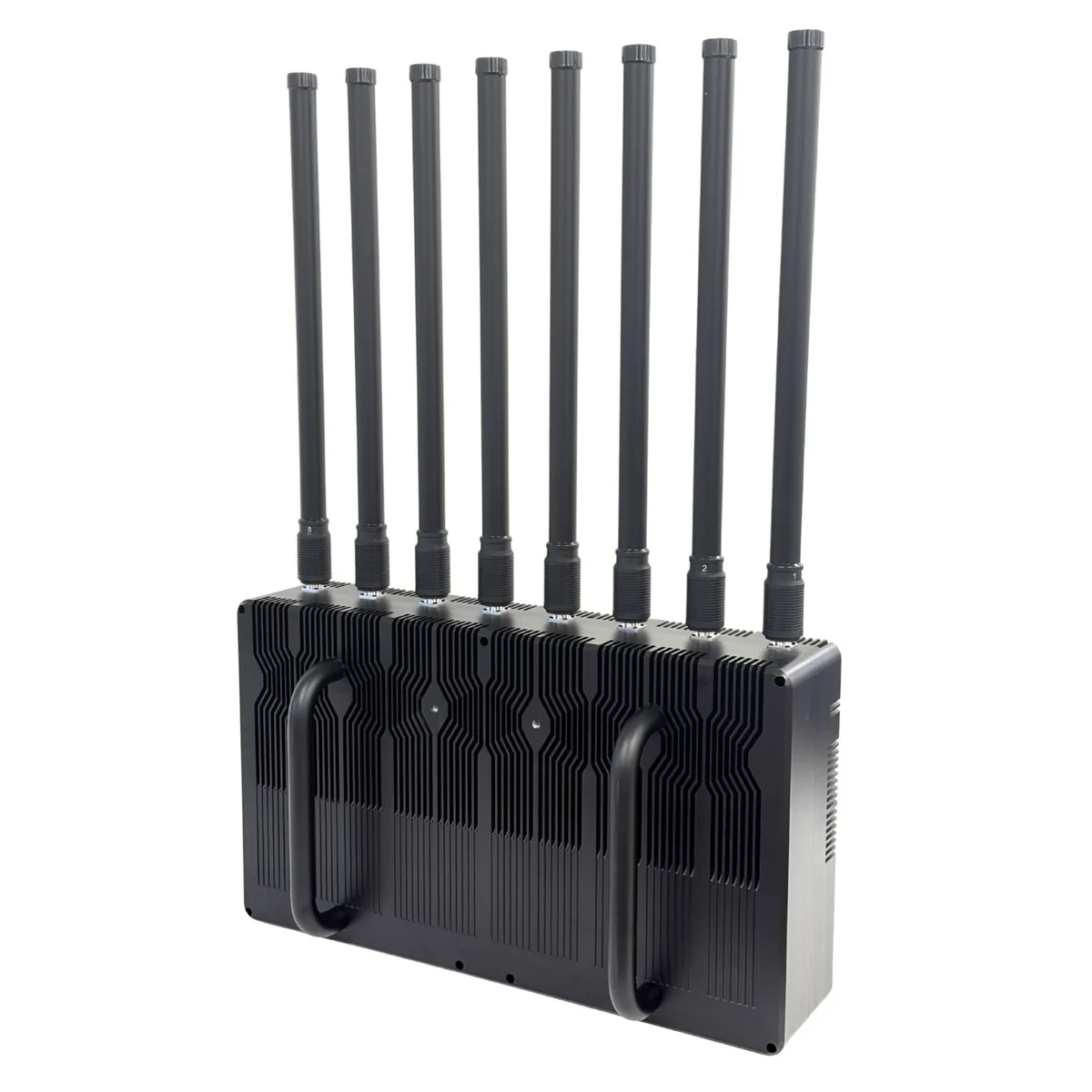

Raptor Guard 800 SDR Smart RF Effector
An 800 W software-defined RF effector. It attacks drone command, telemetry, video and navigation links across several bands and knows the protocols it targets.
Overview
The Raptor Guard 800 SDR Smart RF Effector is a software-defined radio built on an FPGA. It hits drone command links, telemetry, video downlinks and GNSS signals across several bands at once, and you can control each channel on its own. Every channel makes its signal in software and sets its bandwidth right away, so there is no retuning delay and the response is real-time.
You can set the output power and bandwidth of each channel on its own, so you can shape the frequency cover, spread the power and get the most out of the jamming for each job. Because it knows the protocols it targets, it works more efficiently than plain broadband jamming. It takes both omni-directional and directional antennas, so you can cover a wide area or focus on one target.
Key characteristics
- Digital FPGA + SDR design for steady, real-time signal generation
- 800 W RF output with protocol-aware jamming that adapts to the target
- Frequency, bandwidth and power set on their own for each channel
- Omni-directional and directional antenna configurations supported
- Stated jamming distance of 3+ km and 10+ km
- IP67 case with both fan and passive cooling, and a TCP-IP link
Specifications
- RF output power
- 800 W
- Power consumption
- 1800 W
- Jamming distance
- 3+ km & 10+ km
- Antenna type
- Omni-directional & directional
- Weight
- 22 kg
- Dimensions
- 430 × 300 × 190 mm
- Protection class
- IP67
Specifications may change. We confirm the exact figures against the current datasheet when you ask.
